Automatic Glue Mixing Tube
Description
Technical Parameters
We have always insisted on selecting high-quality raw materials and advanced processing techniques to reduce energy consumption and improve the efficiency of the Alumina Ceramic Pieces, Alumina Ceramic Tube, Sintered Silicon Carbide. If you have any inquiry, please do not hesitate to contact us. Our supply is large, for the sales scope spans through various domestic and oversea regions. Whether to customers, employees, or other partners, we will stay and treat each other as always with honesty. With a strong team of experienced engineers in hose design and development, we value every opportunity to provide best products for our customers.

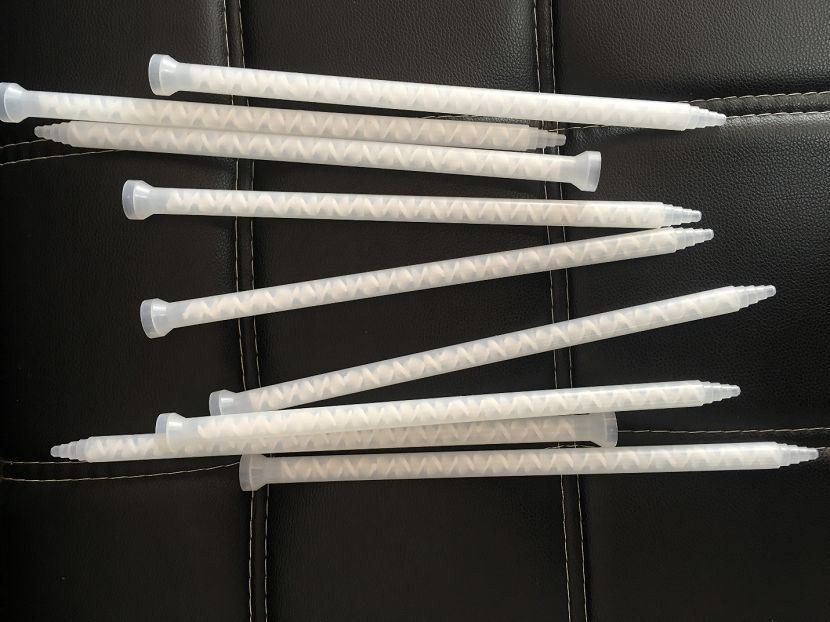

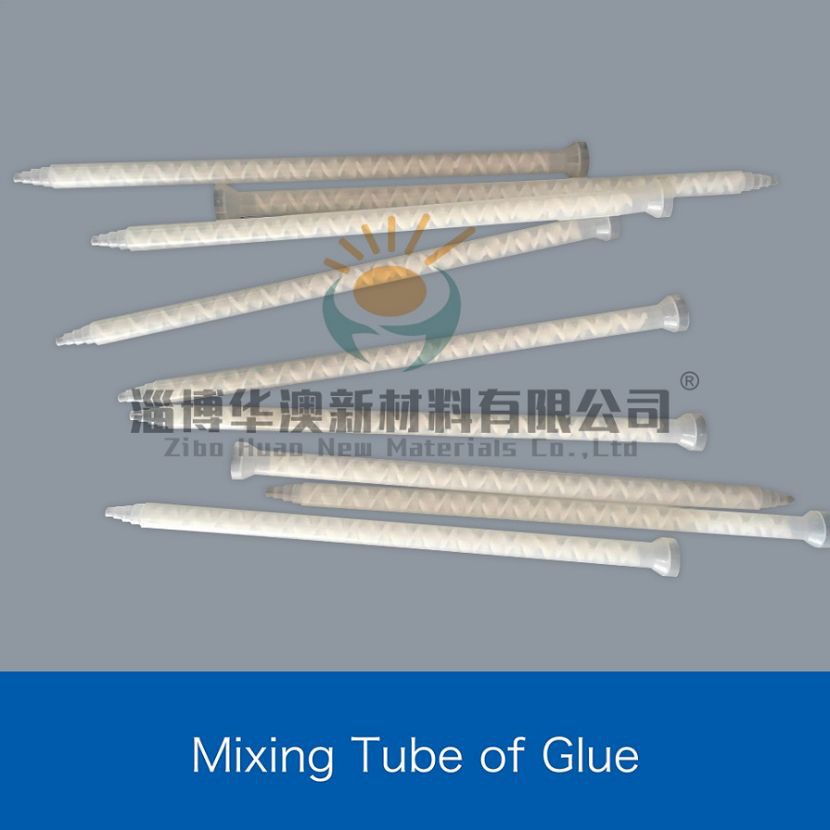

The AB glue mixing tube is composed of a series of left and right blades arranged vertically and closely inside. When fluid through the tube, it will be cutting and restructuring continuously to make the two fluid automatic mixing evenly and provides a two-component liquid mixed with a low cost solution. Using static mixing tube can save manpower, reduce waste, greatly improve productivity and reduce production costs.The product is widely used in electronic production, electrical manufacturing, civil construction, automobile manufacturing, gift decoration and other industries, widely used in a variety of two-component adhesives, filler mixture (including epoxy resin, silicone, epoxy resin, PU, UV).According to the characteristics of two-component adhesive mixing, choose different diameter, length specification of the product, so as to better solve the operation of two-component material mixing.
Product Data of AB glue mixing tube
|
Type |
Segment |
ID |
OD |
Length |
Flow Diameter |
Pipe Socket ID |
Pipe Socket OD |
|
MC/MS06-18 |
18 |
6.3 |
10 |
150 |
2 |
16.8 |
19.5 |
|
MC/MS06-24 |
24 |
6.3 |
10 |
186 |
2 |
16.8 |
19.5 |
|
MC/MS06-32 |
32 |
6.3 |
10 |
235 |
2 |
16.8 |
19.5 |
|
MC/MS08-18 |
18 |
8 |
12 |
177 |
2.5 |
16.8 |
19.5 |
|
MC/MS08-24 |
24 |
8 |
12 |
223 |
2.5 |
16.8 |
19.5 |
|
MC/MS08-32 |
32 |
7 |
12 |
287 |
2.5 |
16.8 |
19.5 |
|
MC/MS10-12 |
12 |
10 |
14 |
160 |
3 |
16.8 |
19.5 |
|
MC/MS10-18 |
18 |
10 |
14 |
214 |
3 |
16.8 |
19.5 |
|
MC/MS10-24 |
24 |
10 |
14 |
276 |
3 |
16.8 |
19.5 |
|
MC/MS10-32 |
32 |
10 |
14 |
352 |
3 |
16.8 |
19.5 |
|
MC/MS13-24 |
24 |
13 |
17 |
293 |
5 |
16.8 |
19.5 |
|
MC/MC13-32 |
32 |
13 |
17 |
376 |
5 |
16.8 |
19.5 |
|
MC/MS13-36 |
36 |
13 |
17 |
423 |
5 |
16.8 |
19.5 |
Advantages and Applications of AB Glue Mixing Tube
In the absence of bubbles in the glue, no bubbles will be generated, and the mixing is uniform, saving labor, reducing waste, effectively improving productivity, and reducing production costs.
AB glue mixing tubes can select products with different inner diameters and length specifications based on the characteristics of two-component adhesive mixing, in order to better solve the operation of two-component mixing.
AB glue mixing tubes are widely used in various two-component adhesives, fillers, and other fields such as epoxy resin, polyurethane, and organic silicone.
