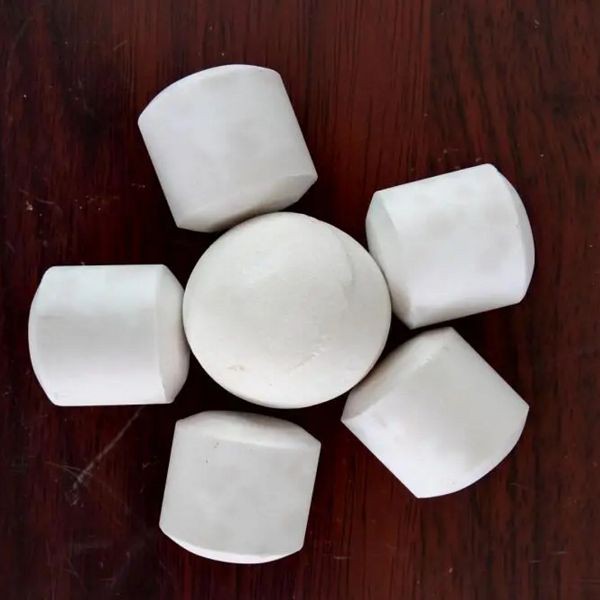

High Alumina Ceramic Balls Beads Cylinders for Quartz Grinding Cement Grinding
Description
Technical Parameters
We are committed to innovation, manufacturing new and excellent AB Glue Mixing Tube, ZTA Ball, White Fused Alumina and strive to provide customers with effective solutions. With advanced professional technology, strict quality control and sincere after-sales service, we have established long-term and fixed business relations with many customers at home and abroad. We will continue to forge ahead and we always regard quality as the foundation, innovation as life, and attach importance to customer feedback information. We keep in line with a high sense of responsibility to the society and users, and adhere to the path of professionalization, continue to innovate and surpass.
Product Description
High Alumina Ceramic Grinding Cylinder is used for the preparation of ceramic body and glaze. It has high purity and low abrasion loss, suitable for both wet and dry superfine grinding of alumina, zirconium silicate, glaze, kaolin clay, quartz, feldspar, inks and ceramics in ball mill. With its excellent wear resistance, corrosion resistance and good impact resistance, High Alumina Ceramic Grinding Cylinder can avoid downtime and maximize the productivity of the factory.
High Alumina Ceramic Grinding Cylinder is a premium quality product that is widely used in industrial applications. This cylinder is made of high-grade ceramic material, which makes it highly wear-resistant, corrosion-resistant, and durable. It is designed to enhance the grinding efficiency of various materials, such as minerals, pigments, and ceramics. The cylinder has a smooth surface finish, which ensures uniform grinding and prevents clogging.
Advantages
High Alumina Ceramic Grinding Cylinder has the advantages of high strength, high hardness, large specific gravity, small size, heat resistance and no pollution. The product has the same inside and outside with high strength and low abrasion, which not only reduces the rate of ball breakage in the high-speed grinding process, but also does not increase the abrasion with the extension of the use time, greatly prolongs the service life of the grinding cylinder and reduces the production cost. We can provide you with different specifications according to your requirement.
It is made of high-quality materials and has good wear resistance, high strength, and corrosion resistance. The product has high density and is not easy to break. It can effectively reduce the pollution of grinding materials and improve the quality of products. In addition, it can save energy and reduce costs, which is an ideal choice for grinding equipment.
Technical specification
|
Item |
92 Series |
95 Series |
99 Series |
|
Al2O3 (%) |
>92 |
>95 |
>99 |
|
Bulk Density (g/cm3) |
>3.62 |
>3.65 |
>3.83 |
|
Water Absorption (%) |
<0.01 |
<0.01 |
<0.01 |
|
Hardness (Mohs) |
9 |
9 |
9 |
|
Self-wear Rate (24H) |
<0.01% |
||
|
Max. Operating Temp |
1800°C |
||
|
Crushing Strength |
>520KN |
||
|
Bending Strength (Mpa) |
>255 |
>275 |
>300 |
Size
|
Diameter, D |
Ø20 |
Ø25 |
Ø30 |
Ø35 |
Ø40 |
Ø50 |
|
|
Plane 45° chamfer |
Height |
10-25 |
20-30 |
30-35 |
35-40 |
40-45 |
50-55 |
|
Arc round chamfer |
Height |
10-25 |
20-30 |
30-35 |
35-40 |
40-45 |
50-55 |
Package
Packing: 25kg/PP-bag, 20-25MT/20'FCL.
Notes: Made and packed according to your requirement
