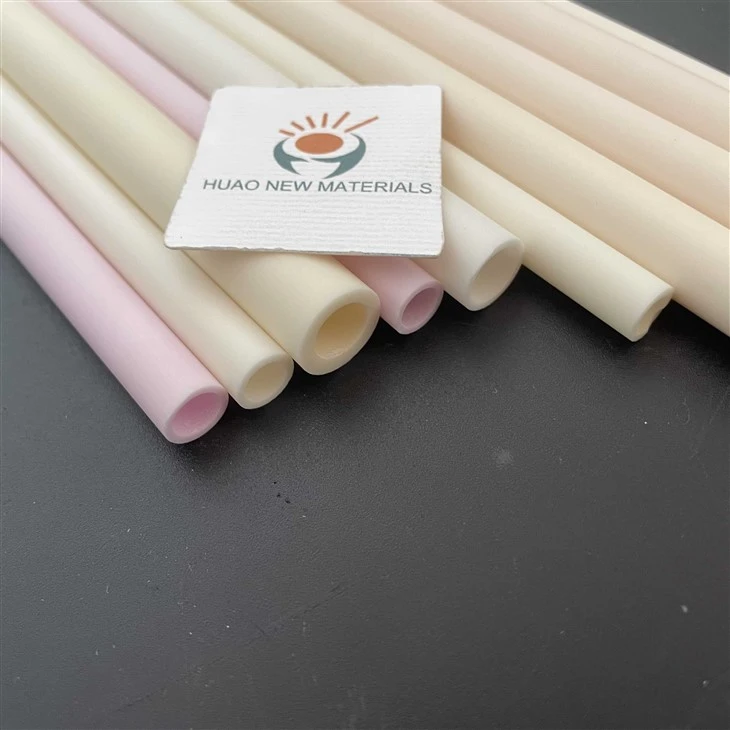

99Ceramic Sheath
Description
Technical Parameters
The 99 Ceramic sheath is mainly used to isolate the temperature measuring element from the outside, protecting the element from corrosion, oxidation, and damage in air, hydrogen, nitrogen, inert gases, carbon monoxide, or vacuum environments. Ceramic insulators are used to separate the different poles of temperature measuring components to prevent electrode contact and short circuits, ensuring accurate measurement results.
After sufficient sintering in the kiln, the phase transition of Al2O3 and ZrO2 produces a fine structure, and the unique formula prevents the ceramic sheath from yielding at high temperatures. We pursue dimensional accuracy while ensuring excellent performance.
99 alumina ceramic protective tubes are usually formed by hot pressing sintering, with a sintering temperature between 1650-1990 ℃. Due to its high hardness and brittleness, precision machining is required during the manufacturing process to ensure dimensional and shape accuracy. Diverse specifications, customizable according to needs.
01
High hardness and wear resistance
The hardness of 99ceramic sheath is second only to diamond, which makes 99 alumina ceramic tubes highly wear-resistant and able to maintain a long service life even under harsh working conditions.
02
High temperature stability
Alumina ceramics have a very high melting point, exceeding 2000 degrees Celsius, so 99 ceramic sheath can work stably in high temperature environments and are not easily deformed or melted.
03
Excellent insulation performance
It is suitable for insulation of high-voltage and high-frequency electronic equipment, and its DC breakdown strength is also high, which can maintain stability in high-voltage environments.
04
Chemical stability
Alumina ceramics have good corrosion resistance to most acids, bases, and organic solvents, ensuring the stability of 99 ceramic sheath in chemical environments.
Advantages of 99 Ceramic Sheath
99Ceramic sheath are free of unbonded silicon, kaolin and activated alumina, and get small coefficient of thermal expansion and supply longer service life.The main features of mullite products are excellent load capability at high temperature and good thermal stability. It is suitable for black and grey casting, all kinds of alloy casting, gold and silver jewelry, metal decoration casting and other industries.
Parameters of 99 Ceramic Sheath
| Coefficient of Thermal Expansion(25℃ to 800℃) | 106/℃ | 7.6 | 7.6 | 7.6 | 7.6 | 7.1 | 5.6 | 10 |
| Dielectric Strength (5mm Thickness) | AC-kv/mm | 10 | 10 | 10 | 10 | 9 | 10.2 | |
| Dielectric Loss25℃@1MHz | <0.0001 | <0.0001 | 0.0006 | 0.0004 | 0.0007 | 0.002 | 0.001 | |
| Dielectric Constant25°C1MHz | 9.8 | 9.7 | 9.5 | 9.2 | 8.6 | 6 | 29 | |
| Volume Resistivity(20℃)(300℃) | 2cm³ | >10142*1012 | >10142*1012 | >10¹44*10¹1 | >10142*1011 | >10¹4>1013 | >10145*1012 | >10135*10⁸ |
| Long-termoperating temperature | ℃ | 1700 | 1650 | 1600 | 1400 | 1200 | 1550 | 1600 |
| Thermal Conductivity (25℃) | W/m ·K | 35 | 35 | 34 | 20 | 16 | 3.6 | 3 |
FAQ
What packaging?
Depending on the size of the cargo, the packaging is different. There are cartons, wooden boxes, and ton packages. According to customer needs or special requirements of the goods, choose the appropriate packaging.
Can you provide free samples?
Yes, we can provide it, please send us specific needs, we will choose the right product sample.
What are the freight methods?
We can send DHL, sea transport, according to the size of the goods and customer needs, choose the most suitable delivery method.
