Alumina Pipe

Product Alumina pipe is mainly used as lining of electric furnace to separate the heating element from burned material and seal the heating zone.Alumina pipe from ADceram is widely used in applications of equipment for coal, powder metallurgy and chemical glass test and analysis. Experiencing...

Send Inquiry

Chat Now

Description

Technical Parameters

product-1-1

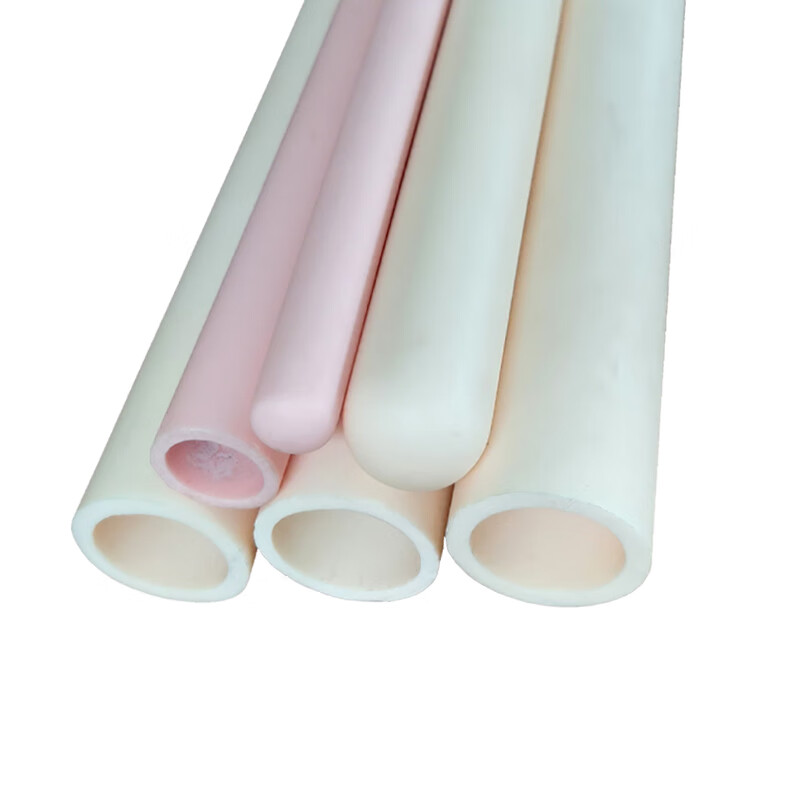

Product Introduction of Alumina Pipe

Alumina pipe is a high-temperature resistant ceramic product mainly composed of high-purity alumina (Al ₂ O3 ≥ 99%). This material is widely used in laboratory scenarios such as metal and non-metal sample analysis, high-temperature melt processing, as well as protection tubes for industrial high-temperature equipment furnace tubes and temperature measurement instrument thermocouples.

Alumina pipes are mainly used as linings for electric furnaces, separating heating elements from combustion materials and sealing the heating zone. HUAO's alumina pipes are widely used in coal, powder metallurgy, and chemical glass testing and analysis equipment. Our pipelines have corrosion resistance and oxidation resistance at high temperatures, as well as leak proof properties. The straightness, accuracy, and electrical insulation of the pipeline are good and qualified at 1650 ℃.

Characteristics of Alumina pipe

Thermal stability: able to withstand long-term use at 1600 ℃ (up to 1800 ℃ for short-term use)

Corrosion resistance: able to resist acid, alkali and molten metal corrosion

Mechanical properties: flexural strength>350MPa, compressive strength>12000MPa

Low thermal conductivity: It can effectively reduce heat transfer, lower heat loss in pipelines, and improve energy utilization efficiency.

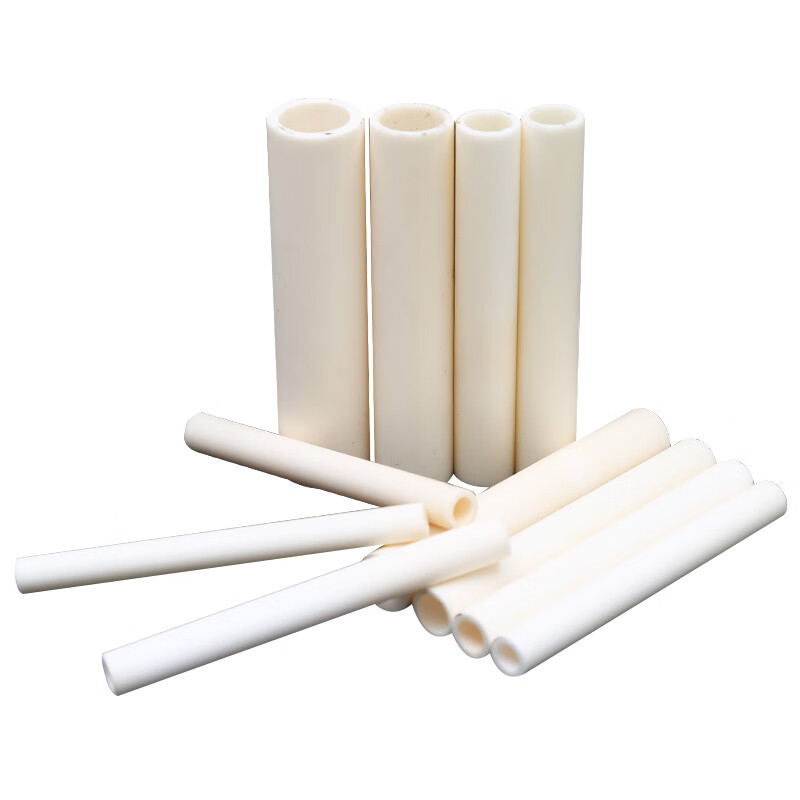

Application and advantages of Alumina pipes

Application

Alumina pipe products are free of unbonded silicon, kaolin and activated alumina, and get small coefficient of thermal expansion and supply longer service life.The main features of mullite products are excellent load capability at high temperature and good thermal stability. It is suitable for black and grey casting, all kinds of alloy casting,gold and silver jewelry, metal decoration casting and other industries.

product-1-1

Advantage

HUAO has independently developed a new discharge tube with two slots, which makes fixing the discharge tube easier. The user don't need to glue an extra accessory any more, it pre- vents the tube from falling due to the unstable connection. The discharge surface is designed ser- rated to make the discharge area larger. The center line of discharge surface is deepened to make it play the role of calibration during installation. The tube body is symmetrical and reversible. This design improves the qualified rate of finished electrode tube.

product-1-1

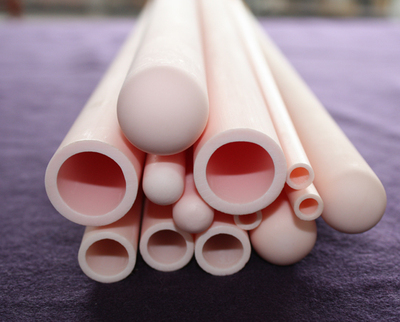

Product parameters of Alumina pipe

工艺TECHNOLOGY	直径DIAMETER(mm)	长度LENGTH(mm)	直径DIAMETER(mm)	长度LENGTH(mm)
挤出EXTRUSION	1	≤1000	8	≤2500
	1.5	≤1000	10
	2	≤1500	12
	2.5	≤1500	14
	3	≤2500	16
	3.5		17
	4		20
	4.5		25
	5
	6
