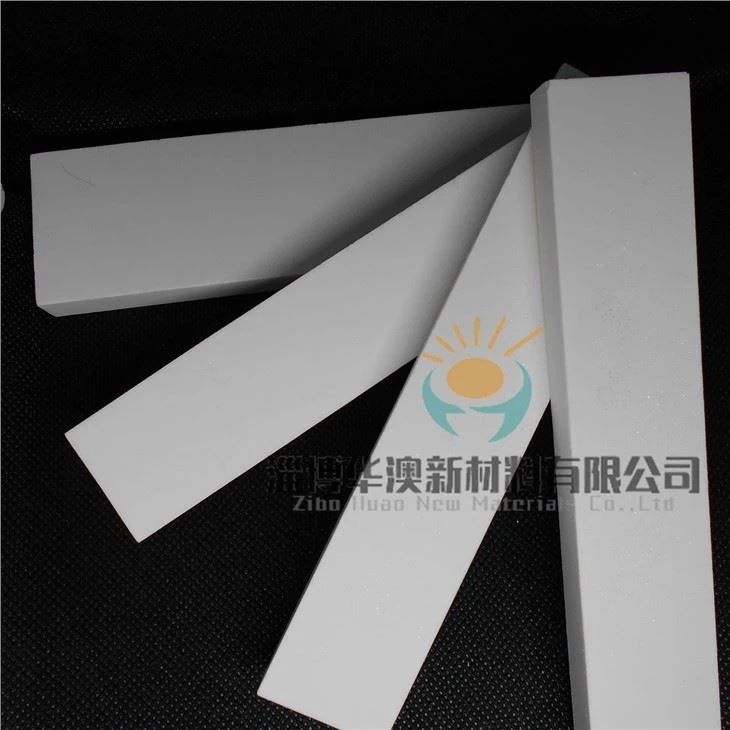

Alumina Ceramic Tile
Description
Technical Parameters
Product Introduction
Ceramic Lining Tile / Alumina Ceramic Plain and Weldable Tile
Alumina Ceramic Tile is of high wear resistance, acid and alkli resistance, effectively prolong the service life of equipment and considered to be the best choice of anti-wearing and anti-corrosion material; Wear resistance of ceramic is 266 times than that of special manganese, 171.5 times to high chrome cast iron; Hardness is much higher than that of wear-resistant steel and stainless steel.
Application: Oil, mining, steel and power industry.
| Alumina Wear Resistant Ceramics |
Application: The products, which are of excellent wear- resistance, impact-resistance, easy operation are ideal surface wear-resisting material for material transfer equipment in mining, iron & steel works, thermal & power plants, mine, etc, and can extend operating life of equipment effectively. Theoretically the life time of the alumina ceramic is about 260 times longer than that of manganese steel and 170 times longer than that of chrome steel. |
| Size | Length(mm) | Width(mm) | Thickness(mm) | Shape |
| 10x10 | 10 | 10 | 1.5-10 | Mosaic/hexagonal |
| 11.55x11.55 | 11.55 | 11.55 | 3-12 | Mosaic/hexagonal |
| 12x12 | 12 | 12 | 3-12.7 | Mosaic/hexagonal |
| 17.5x17.5 | 17.5 | 17.5 | 4-10 | Mosaic/hexagonal |
| 20x20 | 20 | 20 | 5-15 | Mosaic/hexagonal |
| 25x25 | 25 | 25 | 5-15 | Mosaic/hexagonal |
| 50x25 | 50 | 25 | 5-10 | Plain Tile without hole |
| 50x50 | 50 | 50 | 5-15 | Plain Tile without hole |
| 100x100 | 100 | 100 | 6-15 | Plain Tile with or without hole |
| 150x100 | 150 | 100 | 6-100 | Plain Tile with or without hole |
| Remark: More than 2000 sizes and shapes are available up to customer requests |
