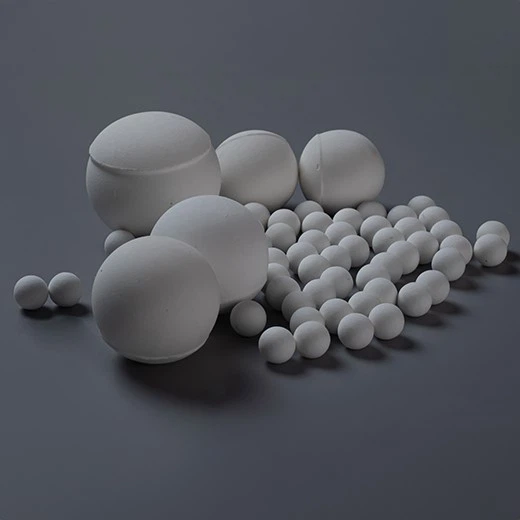

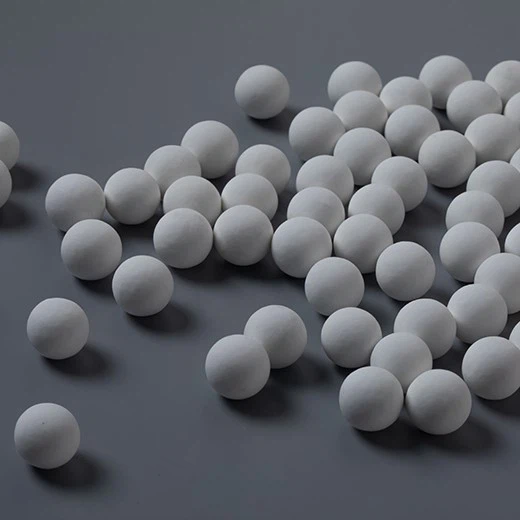

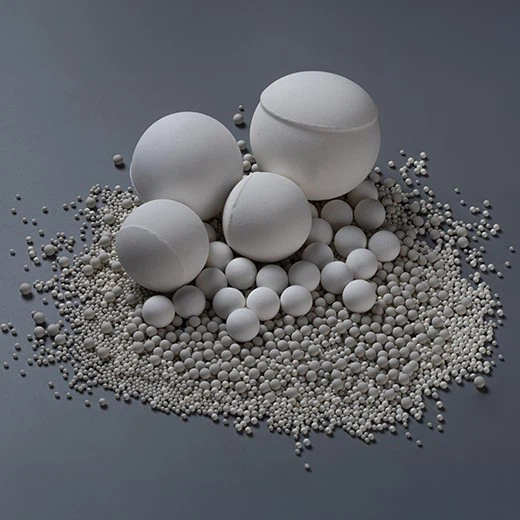

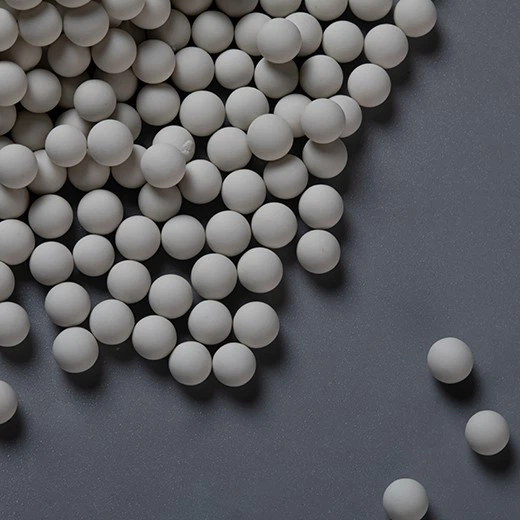

Inert Packing Balls
Description
Technical Parameters
High-purity inert packing balls are wigely used in petroleum, chemical, fertilizer, natural gas and environmental protection industries. They are used as covering support materials for catalysts in reactors and tower packing.
Advantages
The ceramic ball can be used in the reactor as catalyst cover or support material and tower filler, widely used in petroleum, chemical industry, chemical fertilizer, natural gas, environmental protection and other fields, the ceramic ball has high temperature and high pressure resistance, low water absorption, chemical stability, acid resistance, alkali resistance, resistance to some organic solvents and other advantages.
Package
Bag with pallets, 25kg/bag or as customized.
Pallet size:1.0m x 1.0m x 0.1m
1000-1300kg/pallet
Quantity: 20 pallets for 1 x 20'FCL
Max. weight:25-27tons for 1 x 20'FCL
Photo Show
Product Quality Certification
Factory Show
FAQ
· Do you company provide design according to drawings?
Yes, we can.The size can be customized according to cuatomer's requirement.

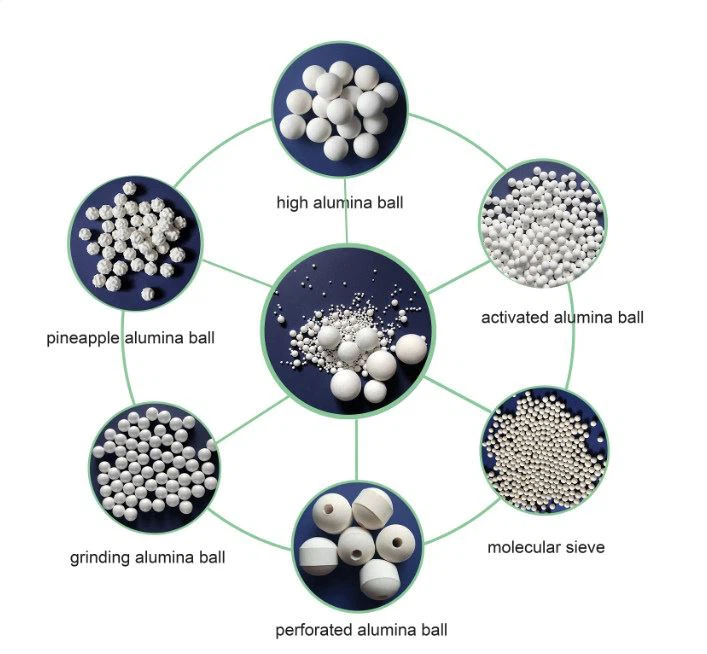

· What's alumina ceramic grinding ball can be provided?
92% & 95% alumina ceramic grinding ball with different size.
· Can you provide finished products?
Yes, we can. We can provide finished products with alumina ceramic grinding balls and Zirconia alumina balls.
Hot Tags: inert packing balls, China, manufacturers, suppliers, factory, customized, buy, Alumina Lining Tile, Mosaic Tiles, White Tabular Corundum, irconia Ceramic Beads, Ceramic Mocaic Tiles, Alumina Ceramic Grinding Balls
Technical specification
|
Brand |
HA-92 |
HA-95 |
HA-99 |
HA-99.5 |
|
AL2O3(%) |
≥92 |
≥95 |
≥99 |
≥99.5 |
|
Fe2O3(%) |
≤0.2 |
≤0.15 |
≤0.1 |
≤0.05 |
|
Bulk density(g/cm³) |
≥3.20 |
≥3.40 |
≥3.50 |
≥3.60 |
|
Packing density(g/cm³) |
1.80 |
1.85 |
2.00 |
2.10 |
|
Unit compressive Strength(13mm/N) |
≥5000 |
≥5500 |
≥6000 |
≥7000 |
|
Water Absorption(%) |
≤5 |
≤5 |
≤5 |
≤5 |
|
Color |
White |
White |
White |
White |
|
Noted: Water absorption can be customized according to customer's requirement |
||||
Specification
Size：0.5mm ≤ Ø ≤ 90mm
Size can be customized according to customer's requirement.
