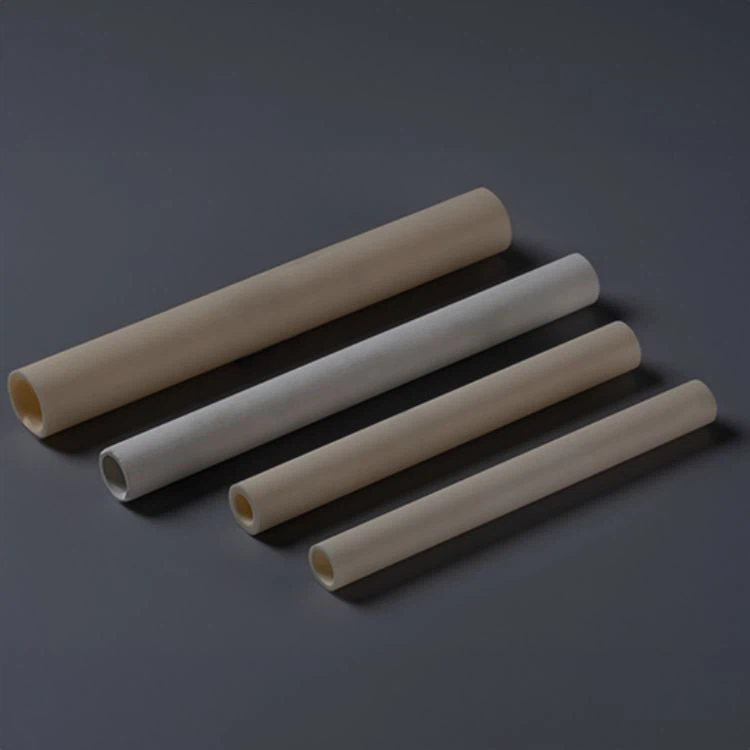

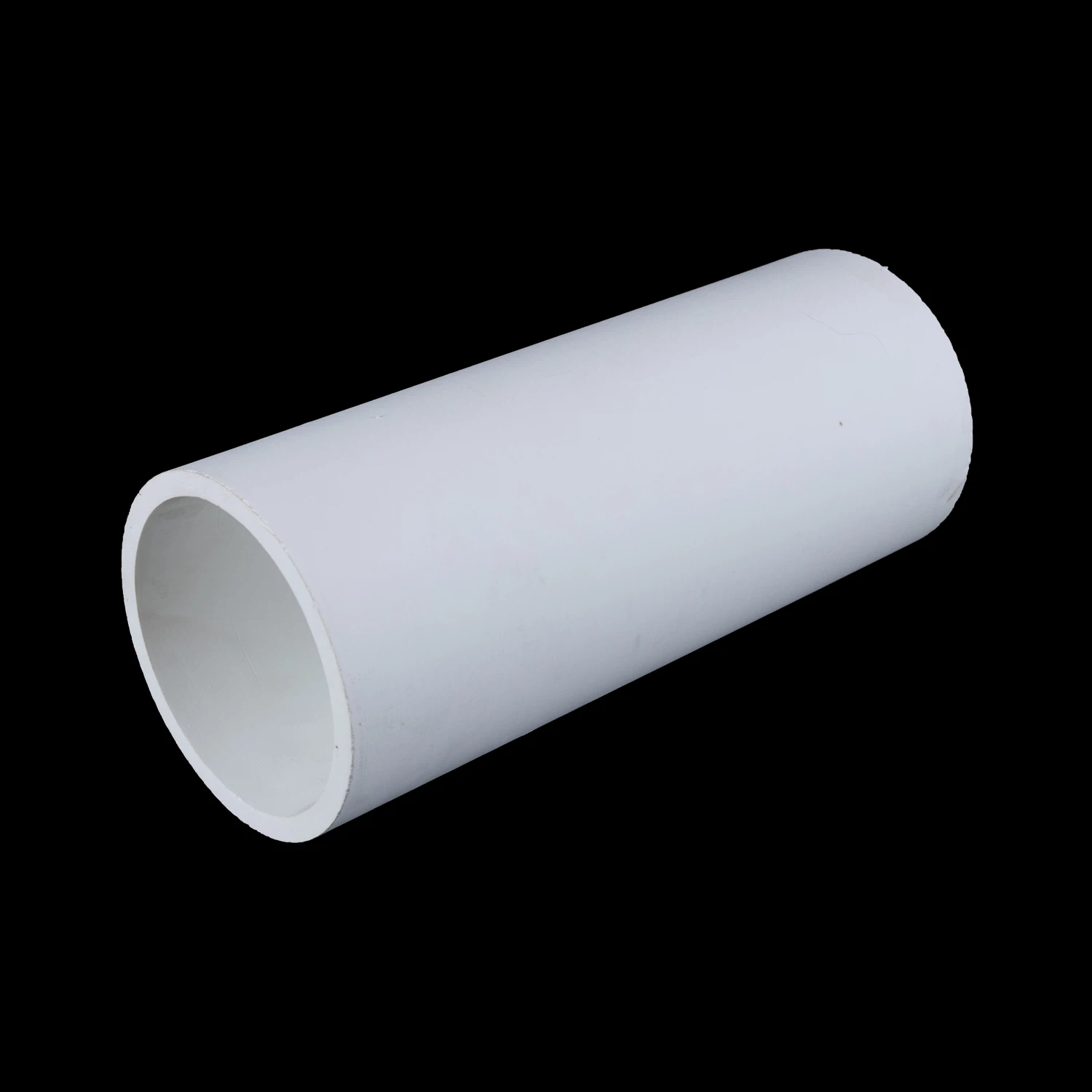

Ceramic Tube
2.Material: 92%, 95% alumina
3.Packing: According to the size of products
4.Application:Ceramic Tube
5.Superiority: Stable quality, no quality complain and customized
Description
Technical Parameters
Product Introduction
Wear Resistant Ceramic Tube Machining Processing
Ceramic Tube are widely used in power, coal, metallurgy, chemical industry and other industries. As an abrasive material and corrosive medium. Ceramic Tube is an ideal wear-resistant and corrosion-resistant pipeline, used to transport sand, coal, ash and aluminum liquid, and is suitable for different high-temperature pipeline inner diameters.
 |  |
 |  |
Application
| Applications & Hardware | ||
| Application | Fastening Methods | Backing plates |
| raw meterial feed | rubber bond | plain rubber with captive studs |
| head chute liner | studs | mild steel |
| impact curtains | captive socket | 3 Cr 12 |
| chute liner | plug weld | Stainless steel |
| rock boxes | ||
| skirt boards | ||
| bucket liner | ||
Characteristics
Ceramic Tube performance characteristics:
1. High hardness: Generally, the hardness is greater than HRA80 or more, and the highest can reach more than 92;
2. Good wear resistance: at least 200 times that of ordinary carbon steel and 10 times that of high-chromium cast iron;
3. Light weight: the specific gravity of alumina is generally only about 3.6, that of silicon carbide is about 2.7, and that of zirconia is about 6;
4. Good heat resistance: The heat resistance of different wear-resistant ceramics is not the same, but this product is used in the occasion of resistance to particle erosion, and there is no problem with heat resistance.
Product Parameter
| Technical Index | HA92% | HA95% |
| Al2O3 (%) | 92±0.5 | 95±0.5 |
| Mos'h Hardness | 9 | 9 |
| Density (g/cm3) | ≥3.6 | ≥3.63 |
Product Size
| Size | Length(mm) | Width(mm) | Thickness(mm) | Shape |
| 10x10 | 10 | 10 | 1.5-10 | Mosaic/hexagonal |
| 11.55x11.55 | 11.55 | 11.55 | 3-12 | Mosaic/hexagonal |
| 12x12 | 12 | 12 | 3-12.7 | Mosaic/hexagonal |
| 17.5x17.5 | 17.5 | 17.5 | 4-10 | Mosaic/hexagonal |
| 20x20 | 20 | 20 | 5-15 | Mosaic/hexagonal |
| 25x25 | 25 | 25 | 5-15 | Mosaic/hexagonal |
| 50x25 | 50 | 25 | 5-10 | Plain Tile without hole |
| 50x50 | 50 | 50 | 5-15 | Plain Tile without hole |
| 100x100 | 100 | 100 | 6-15 | Plain Tile with or without hole |
| 150x100 | 150 | 100 | 6-100 | Plain Tile with or without hole |
| Remark: More than 2000 sizes and shapes are available up to customer requests | ||||
FAQ
Q: Package?
A: Depending on the size of the cargo, the packaging is different. There are cartons, wooden boxes, and ton packages. According to customer needs or special requirements of the goods, choose the appropriate packaging
Q: How long is the delivery period?
A: Depending on the product, the delivery period is different. The customized products are generally about one month, and the conventional products are about 7-10 days
Q: Where you export to?
A: Australia, Europe, India, South Africa, etc
