Zta Grinding Ball, Ceramic Grinding Ball for Ball Mill, Wear Resistant Aluminum Grinding Media
Description
Technical Parameters
Using a complete scientific top quality management program, great high-quality and fantastic religion, we win great track record and occupied this area for Reaction Bonded Silicon Carbide, Alumina Cement, ZTA Grinding Beads. Providing first class products is our aim. Merchandise have been exported to many countries and regions.

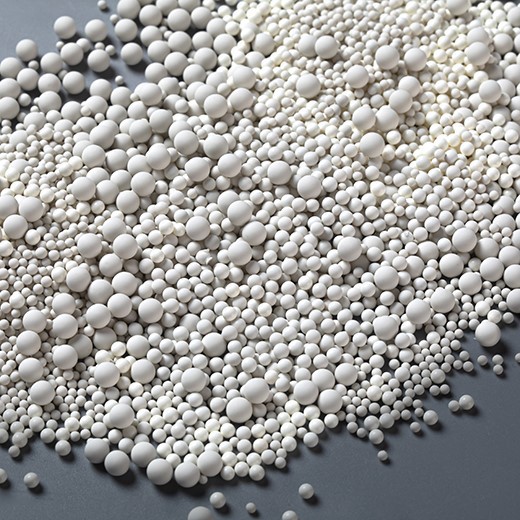

ZTA Grinding Ball
Application
ZTA ball is made of a combination of zirconia and alumina, which makes it more durable than other ceramic materials. It is resistant to corrosion and abrasion, making it ideal for use in harsh environments that require materials with excellent resistance to wear and tear.
It is widely used in industries such as medical, automotive, aerospace, and electronics manufacturing. It is commonly used as bearings, valves, cutting tools, and pumps. It is also used as insulators, electrical conductors, and sensor components in electronic devices.
It also mainly used in calcium carbonate, kaolin, zircon sand, pigments, dyes, graphite, coatings, metal mining industries used as grinding and dispersion media. The beads can also be used for shot peening polishing and other metal surface treatment. According to the customer's different grinding equipment, we can match different density grinding beads.
Properties
ZTA Ball haveGood roundness, high sphericity, the surface has excellent gloss. The product is compact in sintering and has no defects such as porosity and so on.
Excellent toughness, higher crushing strength than ordinary aluminia beads, non-fragmentation in long-term high-speed operation.
Good stability, acid and alkali resistance.
Low equipment attrition.
Parameter
ZTA280 | ZTA320 | ZTA370 | ZTA380 | ZTA450 | ZTA470 | |
Al2O3(%) | ≥57 | ≥70 | ≥87 | ≥66 | ≥5 | ≥3 |
ZrO2(%) | ≥5 | ≥5 | ≥5 | ≥18 | ≥62 | ≥70 |
SiO2(%) | ≤30 | ≤20 | ≤5 | ≤12 | ≤30 | ≤24 |
Bulk density(g/cm3) | ≥2.80 | ≥3.15 | ≥3.70 | ≥3.78 | ≥4.48 | ≥4.60 |
HV Hardness (GPa) | ≥7 | ≥8 | ≥12.5 | ≥11 | ≥10 | ≥10 |
Crushing Strength(N) | ≥250 (ø1.5-2) | ≥800 (ø3.5) | ≥1000 (ø3) | ≥12000 (ø8) | ≥1200 (ø3) | ≥1300 (ø3) |
Water absorption | <0.01 | <0.01 | <0.01 | <0.01 | <0.01 | <0.01 |
Wear loss rate(g/kg.h) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Sphericity | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% |
Standard Dimension
ø 0.2-0.4mm | ø 0.4-0.6mm | ø 0.6-0.8mm | ø 0.8-1.0mm | ø 1.0-1.2mm |
ø 1.2-1.4mm | ø 1.4-1.6mm | ø 1.5-2.0mm | ø 2.0-2.5mm | ø 2.5-3.0mm |
ø 3.0-3.5mm | ø 4mm | ø 5mm | ø 8mm | ø 10mm |
Remarks: Other granularity can be customized according to customers' request.
