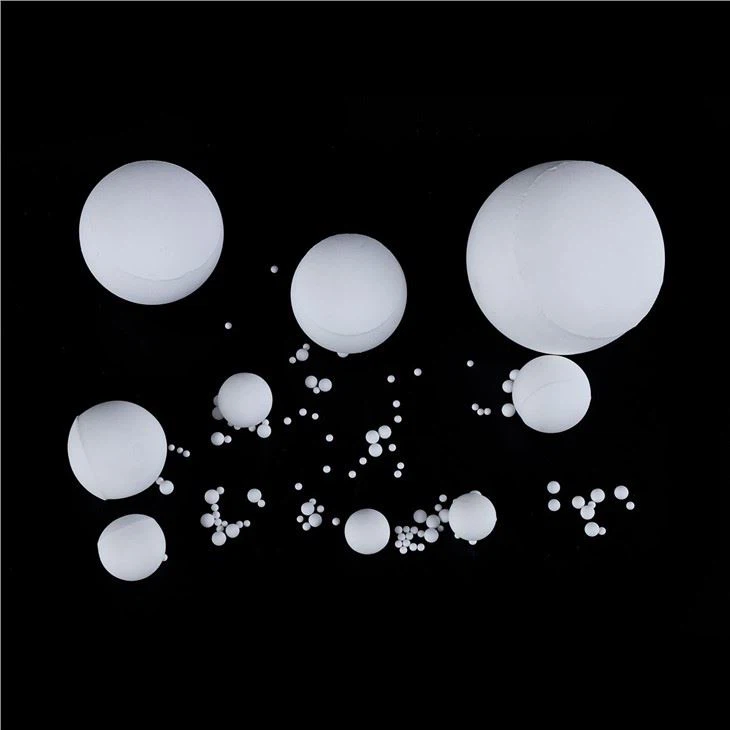

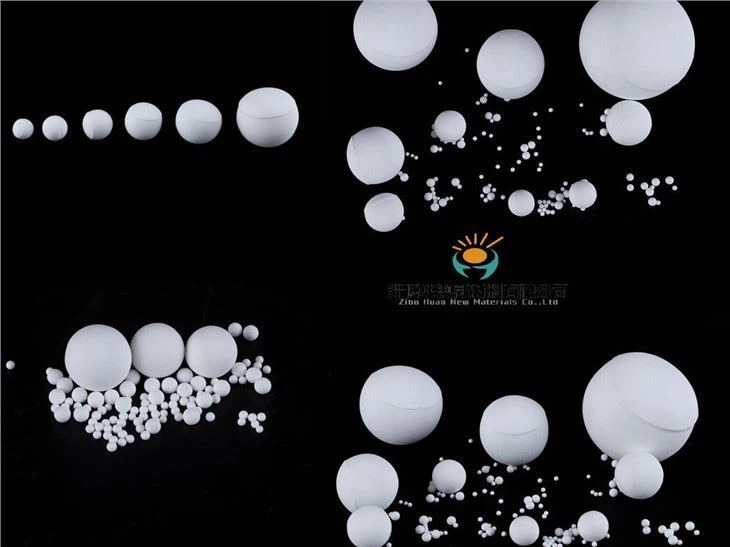

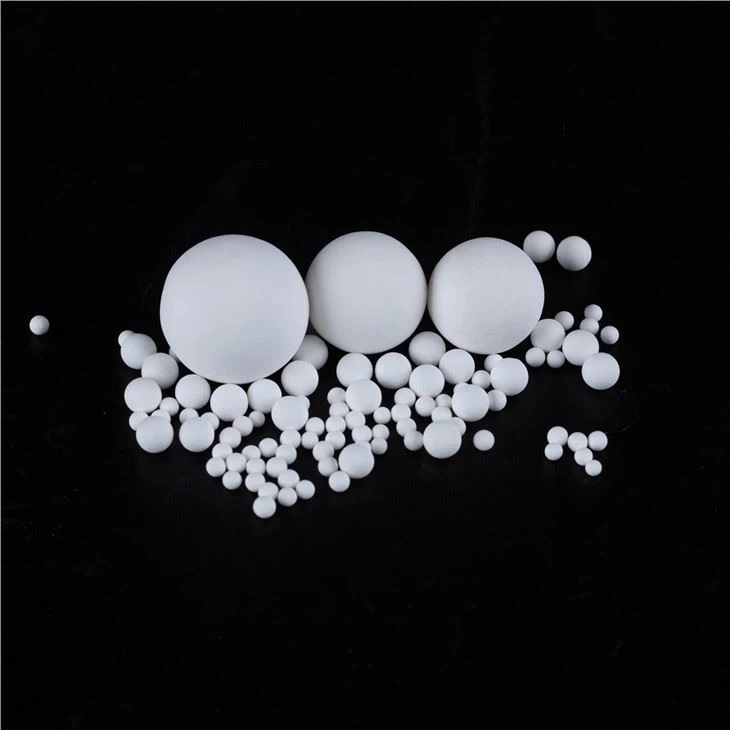

Inert Ceramic Ball Industrial Packing Ball As Support Media

Material formula and quality control of raw materials

The chemical stability and mechanical properties of inert filler balls depend on the purity of the raw materials and the rationality of the formulation. For packaging products used in reaction systems, impurity content is a core indicator related to process safety and product quality, especially heavy metal oxides and alkali metal impurities, which may lead to side reactions or catalyst deactivation.
We choose industrial grade high-purity alumina powder as the main raw material and classify the raw materials according to different product series. For high-purity series with a purity of 99% or higher, we use calcined alumina powder with uniform crystal phase and low impurity content, strictly controlling the content of iron, sodium, and other impurities to ensure that the product does not introduce contamination when in long-term contact with the reaction material.
Each batch of incoming raw materials must undergo comprehensive performance testing in the laboratory, including chemical composition analysis, particle size distribution testing, and specific surface area testing. Only raw materials that meet internal control standards can enter the production process. For sintering aids, we also use high-purity environmentally friendly additives to avoid introducing volatile impurities during the sintering process.
In addition, we implement a raw material sample retention system for each batch of products, with a retention period of no less than 12 months. If any performance abnormalities occur during the subsequent use of the product, we can quickly trace back to the raw material process, identify the cause, and provide timely solutions.

Advantages

1. Stable support performance

In chemical reactors and packed towers, the packing needs to provide reliable mechanical support while maintaining stable operation. Ceramic carrier media need to withstand the weight of the catalyst layer and pressure changes during the production process. The dense structure of ceramic materials provides excellent load-bearing capacity, which helps prevent catalyst movement, breakage, and uneven distribution during long-term operation.

2. Excellent chemical inertness

Many industrial processes involve contact with acidic gases, alkaline compounds, hydrocarbons, and other chemical substances. Ceramic materials have strong chemical resistance and are not easily reactive with process media. This characteristic makes them suitable for applications where maintaining product purity and preventing unnecessary reactions are important.

3. High compressive strength of a single ball

During transportation, filling, and reactor operation, the packing balls may be subjected to mechanical impact. High quality ceramic structures help maintain shape stability and reduce the likelihood of cracking or fragmentation. Lower damage not only extends the service life, but also prevents pressure drop problems caused by damaged particles.

4. Good thermal stability

Industrial reactors typically operate under high temperature and continuous production cycles. Ceramic support materials maintain their physical properties when heated, enabling equipment to operate more reliably. Compared to materials that may soften or degrade at high temperatures, ceramic balls provide a more stable solution for heat treatment environments.

5. Improve the fluid distribution inside the equipment

The size, roundness, and surface condition of the packing medium can affect the movement of gases and liquids through the reactor. Uniform ceramic balls help create more balanced flow channels, reduce areas of excessive resistance, and improve the contact efficiency between process materials and catalyst layers.

Applications

1. Refining industry
In refining units such as hydroprocessing reactors, catalytic reforming reactors, and hydrocracking reactors, this product is placed as a cover layer and support layer on the upper and lower parts of the catalyst bed. It can prevent catalyst particles from being carried away by high-speed oil and gas flow, evenly distribute the reaction feed, and reduce the erosion damage of the feed to the catalyst bed. It can withstand long-term high temperature and high pressure environments and erosion from oil media, ensuring the long-term stable operation of the reactor.
2. Chemical industry
Suitable for various distillation towers, absorption towers, extraction towers, and drying towers in chemical production. As a supporting material for tower packing, it ensures the uniformity of gas-liquid distribution and improves mass transfer efficiency. For chemical plants containing corrosive media such as sulfuric acid, nitric acid, and caustic soda, high-purity series products can resist long-term corrosion of the media and avoid packaging failures caused by corrosion. It is also widely used in fine chemical and pharmaceutical production equipment with high purity requirements, without introducing impurity pollution.
3. Fertilizer industry
It is used in equipment such as converters, desulfurization towers, decarbonization towers, etc. in the production of synthetic ammonia, urea, and compound fertilizers. It can withstand high temperature and high pressure process conditions, resist the corrosion of process gases such as hydrogen sulfide and carbon dioxide, stabilize the catalyst bed structure, and ensure the long-term operation of fertilizer production equipment.
4. Natural gas industry
In natural gas purification devices such as desulfurization towers, decarbonization towers, and drying towers, it is used as a support and covering medium for adsorbents and catalyst beds. It has good adaptability to acidic gas components such as hydrogen sulfide and carbon dioxide in natural gas, and will not react with gas components, ensuring the stable operation of the purification system.
5. Environmental protection industry
It is used as a packing support medium in environmental protection equipment such as exhaust gas scrubbing towers, wastewater treatment reactors, and flue gas desulfurization devices. It can adapt to complex exhaust gas and wastewater components, resist the erosion of various acidic and alkaline pollutants, have a long service life, and reduce the maintenance cost of environmental protection equipment.
For special working conditions, we can provide targeted product selection and packaging design based on specific parameters such as equipment size, medium composition, temperature, and pressure.

Technical Data

Packaging, storage, and logistics

Ceramic packaging balls are hard and brittle products, and standardized packaging and storage can effectively reduce the damage rate during transportation and storage.
packaging solution
Inner packaging: Traditional small packaging products use thick woven bags lined with plastic film, which have moisture-proof and dustproof functions. Large scale orders are packaged in ton bags for easy mechanical loading and unloading, reducing damage caused by manual handling.
Outer packaging: The goods are packaged on pallets and reinforced with packaging tape to prevent scattering during transportation. For export orders, use fumigation free wooden pallets to meet customs inspection requirements.
Identification information: Each package is labeled with product model, specifications, batch number, net weight, and other information, and is accompanied by a factory inspection certificate for customer acceptance.
Storage requirements
Store in a dry and ventilated warehouse, avoid rain and moisture, and avoid prolonged contact with corrosive substances.
The stacking height of pallet packaging should not exceed 5 layers to avoid excessive pressure on the bottom packaging, which may cause product damage.
Handle with care during loading and unloading. Throwing and rolling packaging is strictly prohibited to reduce the risk of product damage.
logistics distribution
Regular specification products are kept in sufficient inventory, and the delivery cycle for inventory products is usually 3-7 days. Customized products are arranged for production immediately after order confirmation, and the delivery cycle is determined based on the order quantity and process difficulty.
We cooperate with professional logistics companies and can provide transportation methods such as sea, land, and air according to customer needs. For international orders, we provide comprehensive services such as export customs clearance and document preparation.
We track the entire logistics process and provide timely feedback to customers on the waybill number and logistics status, so that they can grasp the delivery progress and arrange on-site construction plans.

FAQ

Q1: Why are ceramic balls suitable as catalyst support media?
A1: Ceramic balls have good mechanical strength, chemical stability, and resistance to temperature changes. These characteristics enable them to maintain structural integrity when working in harsh industrial environments.
Q2: How should customers choose the correct ceramic ball size?
A2: The choice depends on equipment design, catalyst size, airflow conditions, liquid distribution requirements, and operating pressure. Appropriate size helps achieve better flow performance and reduce pressure loss inside the equipment.
Q3: Can inert ceramic balls be used in high-temperature environments?
A3: Yes. Ceramic materials maintain stable physical properties at high temperatures, making them suitable for many industrial processes involving thermal exposure and continuous operation.
Q4: What information is required for quotation?
A4: The customer should provide the required dimensions, quantity, application environment, equipment type, and technical specifications (if any). These details enable suppliers to recommend suitable products more accurately.
