Alumina Ceramic Rubber Lining Wear Plate
Description
Technical Parameters

Products Description

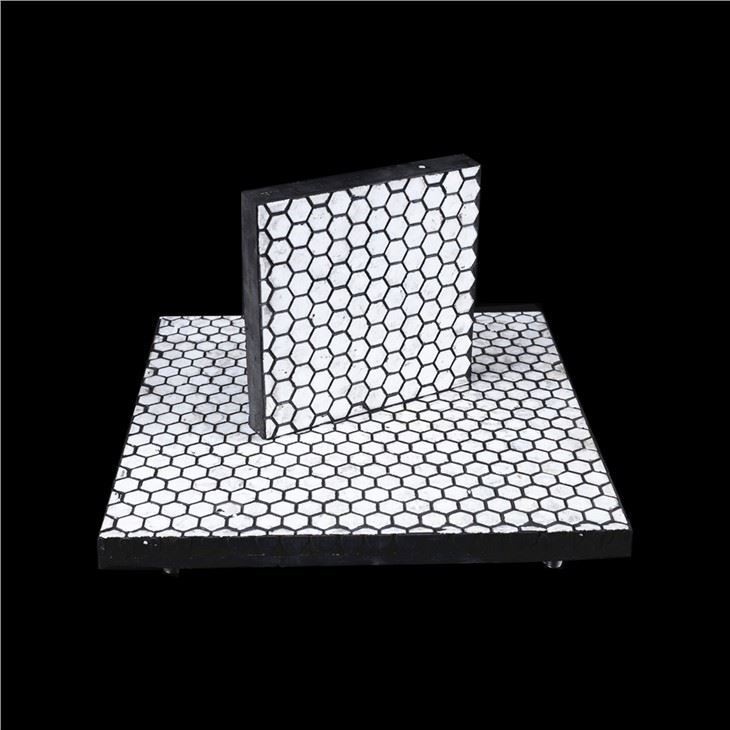

The composite alumina ceramic rubber lining wear plate is composed of alumina wear-resistant ceramics, which are vulcanized and embedded in a steel groove containing special rubber under high temperature conditions, forming a wear-resistant and impact resistant wear-resistant ceramic composite lining plate, and forming a corrosion-resistant and wear-resistant layer. Composite wear-resistant ceramic lining plates can be divided into two types: 2-in-1 composite lining plates (ceramic+rubber, ceramic+steel plate) and 3-in-1 composite lining plates. The three in one ceramic lining plate adopts a hot vulcanization process, which vulcanizes the reinforced ceramic plate into a steel plate groove containing special rubber, and is equipped with countersunk bolts. This lining is a customized product made of composite materials of various thicknesses and shapes according to wear conditions, which can form a strong wear-resistant layer. The various material properties of the lining complement each other, providing incredible wear resistance and impact resistance. Form a panel with good wear resistance and impact resistance. Can be used in medium-sized wear and tear industries such as sand and gravel, mining, and other high impact areas.
The impact wear-resistant plate uses rubber as the adhesive. Rubber is pressed between alumina bricks and steel backboards. This process has high pressure, high temperature, and excellent adhesive properties. This ensures that it is almost impossible to remove alumina from the board.
Features
1. Super abrasion resistance
The wear resistance of the ceramic layer of the alumina ceramic rubber lining wear plate is 266 times that of manganese steel and 171.5 times that of high chromium cast iron. Its dense corundum crystal structure can resist abrasive wear from ores, coal, and cement clinker. In the application of cement plant chutes, after 2 years of use, the wear is only 0.5mm, while the wear of manganese steel is 10mm.
2. Impact resistance and delamination resistance
The rubber layer acts as a shock absorber, dissipating the impact energy of falling bulk materials. The three-layer structure transmits impact force in sequence to avoid ceramic cracking or steel deformation. It can withstand a 10J impact at temperatures ranging from -40 ° C to 100 ° C without damage.
3. Acid and alkali resistance
Resistant to most acids, alkalis, and corrosive gases (pH 3-12). The ceramic layer can prevent chemical attack, while the rubber layer can resist aging in wet or salt environment. It is superior to steel lining in chemical and port applications, avoiding rust and corrosion.
4. Anti stripping: Ceramic rubber steel plates are fully vulcanized using hot vulcanization technology, with strong adhesion. Each ceramic component has through bolts that pass through the bottom steel plate, which are welded firmly and have dual safety.
5. Easy installation and replacement: Provides complete lining for modular installation, replacement, and installation, only used in areas with severe wear and impact, saving costs and human resources.
6. Reduce maintenance: Strong wear resistance can greatly reduce maintenance frequency, save costs and labor.
7. Customization support: The shape, size, and thickness of ceramic blocks or liners can be customized according to your specific working conditions or purposes.
Application
1. Mining industry
Alumina ceramic rubber lining wear plate is suitable for chute lining, hopper wall, and crusher feeder. It can resist severe wear and impact of hard minerals, extending the service life of equipment by 3-5 times. In limestone mines, it eliminates frequent lining replacement caused by severe wear and tear of the ore.
2. Power industry
It can be used for coal conveyor chutes, mill liners, and ash removal equipment. Capable of withstanding the wear and tear of coal and ash, reducing maintenance frequency.
3. Metallurgical industry
Applied to blast furnace silos, sintering plant chutes, and steel slag conveyors. It can resist the impact and corrosion of high-temperature slag, protecting equipment from thermal deformation and wear.
4. Port and dock industry
Suitable for ship unloader hoppers, conveyor transfer points, and bulk cargo chutes. It buffers the impact of heavy ore/coal and resists salt spray corrosion.
5. Building materials industry
Used for cement chutes, mixer liners, and aggregate conveyors. It can resist the wear of cement clinker and aggregates, improve production efficiency, and reduce downtime.
Technical Data
|
Panel Size |
300×300, 200×200, 225×225, 250×250, 400×400, 425×425, 500×500, 600×600 |
|
Ceramic Size |
Ceramic tiles are available from 10×10mm to 100×150mm; thickness of ceramic tile can be from 1.5mm to 1.5mm |
|
Backing Plate |
Steel plate with thickness ranging from 3mm to 10mm (optional) |
|
Rubber Thickness |
Depends upon the impact stress expected or customer requirement. |
|
Remarks |
Metal+Rubber+Ceramic/Rubber+Ceramic Plain surface or Spherical surface. Studs also aviilable upon request custom shapes can be made. |
FAQ
Q1: What is the difference between alumina ceramic rubber lining wear plate and ordinary steel lining?
A1: The steel lining wears out quickly (1-3 months) and rusts. The wear-resistant plate with alumina ceramic rubber lining has 266 times the wear resistance, corrosion resistance, and shock absorption, with a service life of 3-5 years.
Q2: Can it be used for curved equipment surfaces?
A2: Yes. The rubber steel composite structure allows for cutting and bending of curved surfaces such as hoppers and pipelines. We can provide customized bending plates.
Q3: What temperature range can it withstand?
A3: The standard model operates within the temperature range of -40 ° C to 120 ° C; The high-temperature version can handle temperatures up to 150 ° C.
Q4: What is the installation method?
A4: Bolt installation through pre drilled steel plates - no welding or glue required, quick and detachable.
Q5: What are the minimum order quantity and warranty?
A5: The minimum order quantity is 5 tons; Trial order (100kg) available. We offer a 12-month manufacturing defect warranty period.

Severe wear and frequent downtime can deplete your profits. Alumina ceramic rubber lining wear plate is a better solution for high wear and high impact industries.
