What Are The Technical Performance and Wear Protection Value of Alumina Ceramic Bricks？

Alumina Ceramic Bricks represent a core functional material in modern industrial wear protection, widely deployed across ball mills, chutes, hoppers, and pneumatic piping networks. Manufactured through precision molding and high-temperature sintering, these high-density alpha-alumina lining blocks provide a robust mechanical shield against continuous material abrasion and heavy particle impacts. By effectively absorbing kinetic impact forces and resisting surface erosion, ceramic brick linings prevent metal wall degradation, extend equipment operational lifespans, and eliminate iron contamination during fine grinding operations. As a trusted manufacturer and exporter, HUAO supplies high-purity alumina ceramic bricks tailored to rigorous international standards for wear resistance and dimensional precision.







The industrial value of alumina ceramic lining bricks is governed by key mineralogical and physical parameters:



• Exceptional Hardness and Abrasion Resistance: Rated at Mohs hardness 9, alumina bricks exhibit extreme scratch and scuff resistance against hard ores, minerals, and abrasive slurries.
• High Sintered Density: With a bulk density reaching ≥ 3.60 g/cm³ for 92% alumina and ≥ 3.65 g/cm³ for 95% alumina, the dense microcrystalline lattice minimizes internal porosity, preventing micro-cracking and particle penetration under heavy impact.
• Ultra-Low Wear Loss (≤ 0.01%): Minimal mass loss under continuous friction ensures an exceptionally long operational lifecycle while protecting raw materials from discoloration or chemical contamination.
• Chemical Inertness and Thermal Stability: High alpha-alumina content guarantees resistance against aggressive acid-base chemical attack and severe thermal cycles within milling and transfer systems.





Matching specific material grades to processing environments optimizes equipment protection and cost efficiency:



AH-92 Grade: Standard Wear Protection Series

Chemical Composition: Al2O3 ≥ 92%

Technical Performance: Bulk Density ≥ 3.60 g/cm³, Mohs Hardness 9, Wear Loss ≤ 0.01%, Color: White.

Application Profile: Ideal for standard ball mill linings, raw material wet and dry grinding circuits, and medium-duty slurry pipeline conduits.



AH-95 Grade: High-Purity Ultra-Wear Series

Chemical Composition: Al2O3 ≥ 95%

Technical Performance: Bulk Density ≥ 3.65 g/cm³, Mohs Hardness 9, Wear Loss ≤ 0.01%, Color: White.

Application Profile: Engineered for high-speed, heavy-duty fine grinding mills, abrasive mineral slurry transport, and applications requiring strict impurity control.





To ensure seamless installation without gaps that expose underlying equipment shells, ceramic bricks are manufactured in specific interlocking geometries:



1. Rectangle Brick (Straight Brick): Standard dimensions of H (40-120 mm) x W (50 mm) x L (150 mm). Functions as the main structural lining for flat shell walls and large cylindrical sections.
2. Half Rectangle Brick: Compact dimensions of H (40-120 mm) x W (50 mm) x L (75 mm). Applied for staggering joint lines to eliminate continuous longitudinal seams.
3. Trapezoid Brick (Tapered Brick): Precision tapered design with H (40-120 mm) x W1/W2 (45/50 mm) x L (150 mm). Specially designed for circular mill shells and pipeline circumferences to create tight, smooth arch linings.
4. Half Trapezoid Brick: Compact tapered design of H (40-120 mm) x W1/W2 (45/50 mm) x L (75 mm). Enables exact edge matching and gap closure along curved mill heads.
5. Flake Brick (Thin Brick): Slim profile measuring H (40-120 mm) x W (25 mm) x L (150 mm). Formulated for space-constrained pipe interiors or lightweight surface armor.

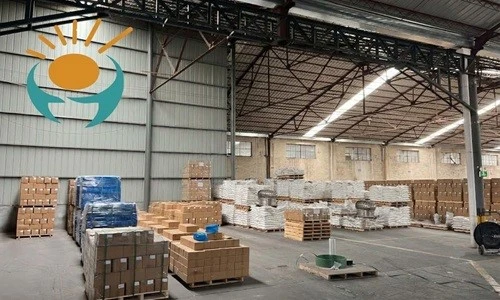

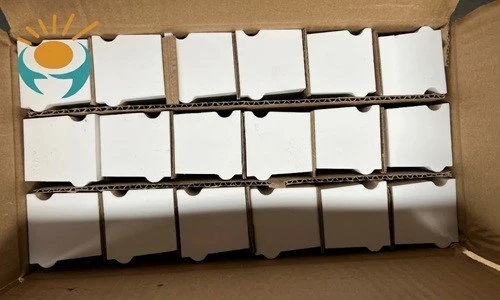

Maintaining tight dimensional tolerances and uniform batch density is critical to preventing brick displacement during high-speed rotation. HUAO produces ceramic bricks under strict quality management systems, ensuring consistent density, smooth surface finishes, and excellent mechanical toughness across every batch. By offering engineered brick combinations, custom dimensional options, and reliable export packaging, HUAO delivers comprehensive wear protection solutions for global industrial clients.





Utilizing ceramic bricks requires evaluating Al2O3 content (≥ 92% vs ≥ 95%), density thresholds (≥ 3.60 g/cm³ vs ≥ 3.65 g/cm³), and precise brick geometries for seamless equipment coverage.
