How Do Ceramic Mosaic Tiles Protect Slurry Pipes?
Aug 20, 2026
Leave a message
Applying wear-resistance mosaic tiles inside liquid slurry pipelines shields pipe walls against severe fluid scouring and continuous aggregate impact. Their flexible netted mats allow fast adhesion onto complex curved inner surfaces. Partnering with HUAO provides high-hardness ceramic mosaic linings that prevent pipe erosion and extend machinery service life across mining, power, and chemical processing facilities.
Fluid conveying pipelines in mineral processing plants, oil fields, and cement facilities face continuous internal erosion from high-velocity liquid flow carrying abrasive solids. Wear-resistance mosaic tiles serve as high-density inner protective linings across conveying pipes, bend elbows, and liquid handling equipment. Manufactured with high Mohs 9 hardness and exceptional corrosion resistance, these white ceramic tiles absorb material impact and fluid scouring, effectively preventing pipe wall thin-out and structural failure.

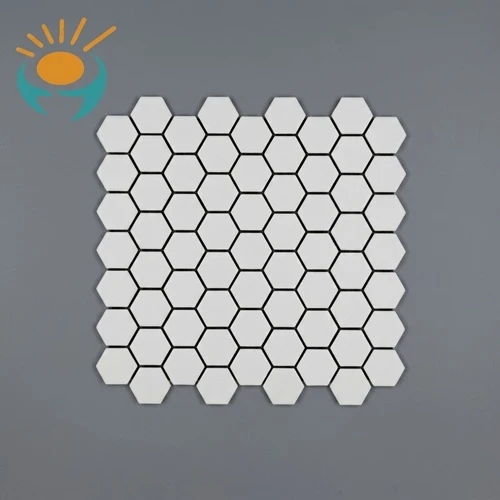

Matching the ceramic grade and shape to pipe geometry ensures easy application and long-lasting abrasion protection. HUAO offers AH-92 (Al₂O₃ ≥ 92%, bulk density ≥ 3.60 g/cm³) and AH-95 (Al₂O₃ ≥ 95%, bulk density ≥ 3.65 g/cm³) grades, both featuring an ultra-low wear loss (≤ 0.01%). Available in Square Shape (10-24 mm length/width, 3-20 mm thickness) and Hexagon Shape (12-20 mm length/width, 3-15 mm thickness), these small tile pieces are pre-assembled on acetate cloth or nylon mesh sheets to fit tightly along narrow interior pipe bends.
Alumina wear-resistance mosaic tiles provide vital erosion protection and long service life for industrial slurry pipelines. Engineered ceramic solutions from HUAO help plant engineers prevent pipeline leakage and reduce ongoing maintenance costs.
